Monday, December 17, 2018

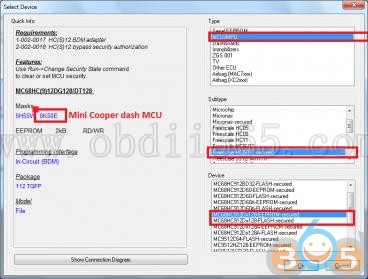

How to Read Mini Cooper Dash MCU 0K50E with Xprog v5.55

Mini Cooper dash MCU mask 0K50E read with Xprog 5.55 clone programmer.
Tested with 2 PCB and work fine!!!

Read/write eeprom ok!
Read/write flash ok!


MCU Secured!!!
xprog-mini-cooper-mcu-0k50e-1
xprog-mini-cooper-mcu-0k50e-2

xprog-mini-cooper-mcu-0k50e-3
http://www.obdii365.com/wholesale/xprogm-v555-ecu-programmer.html

Friday, December 14, 2018

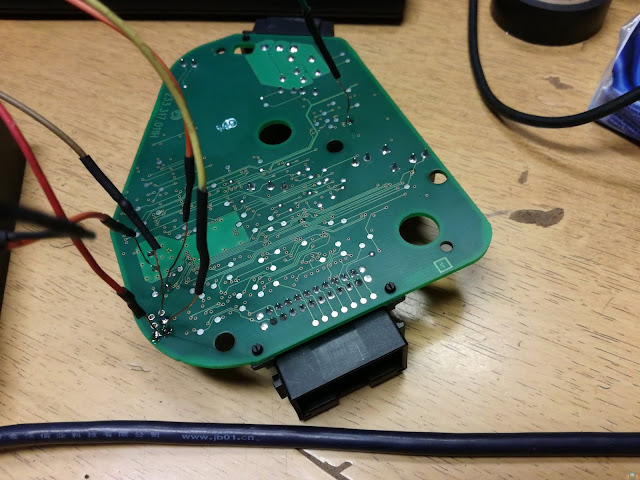

How to Read Audi A6 ELV 1L59W/3L40K with Xprog 5.55

Info for read audi a6 ELV (Steering lock)1L59W/3L40K with Xprog 5.55 (clone) tested by 6 PCB and successfully done without any problems
Read/Write eeprom.successfully
Read/Write flash.successfully


MCU SECURED!
xprog-audi-a6-1l59w-1

xprog-audi-a6-1l59w-2

xprog-audi-a6-1l59w-3

xprog-audi-a6-1l59w-4
Xhorse VVDI Prog the best for this job!
A lot of time read ELV from AUDI with vvdi prog.
But xprog is mucj cheaper than vvdi prog.

Wednesday, December 5, 2018

Free Download Xprog V5.84 new software can Read EEPROM

Problem:
My Xprog V5.84 fail to read serial eeprom, don’t give eeprom options.
Error “For information, please refer to xprog-m users manual”
xprog-v584-cannot-read-eeprom
Solution from obdii365.com engineer:
Xprog v5.84 default software CD does not have eeprom capabilities which is different from previous version V5.74/5.60/5.55 etc

But the new v5.84 software has modified the software to enable eeprom reading.

xprog-v584-software
File containing:
xprog-v584-download
Operating system: Windows XP/Windows 7/Windows 8
Language: English/Chinese

Tips for installing Xprog V5.84.
1.Disable anti-virus program when downloading software and running software.
2.Uninstall all the software and USB drivers of the old version xprog-box on your computer, then install the new XPROG5.84 software.
3. Run 5.84Regsisty program for several times when installing software
4.Run  5.84Regsisty file for 2 times before you run software everytime .


XPROG-M V5.84 Authorizations:
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, …) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, …) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13
AUTH-0028-1 Renesas V850 Authorized 2017/10/9
AUTH-0028-2 Renesas SuperH Authorized 2017/10/9

How to install Xprgo V5.84 software (on Windows 7)?
